Tavelo Grow geometry
Tavelo Grow (carbon gravel) has 6 published frame sizes. Stack 530–627 mm; reach 368–414 mm. Sources, weights and tyre clearance where available.
Gravel · carbon · Model year not specified
Check the source. The frame version or current availability is not fully confirmed. Check the source notes.

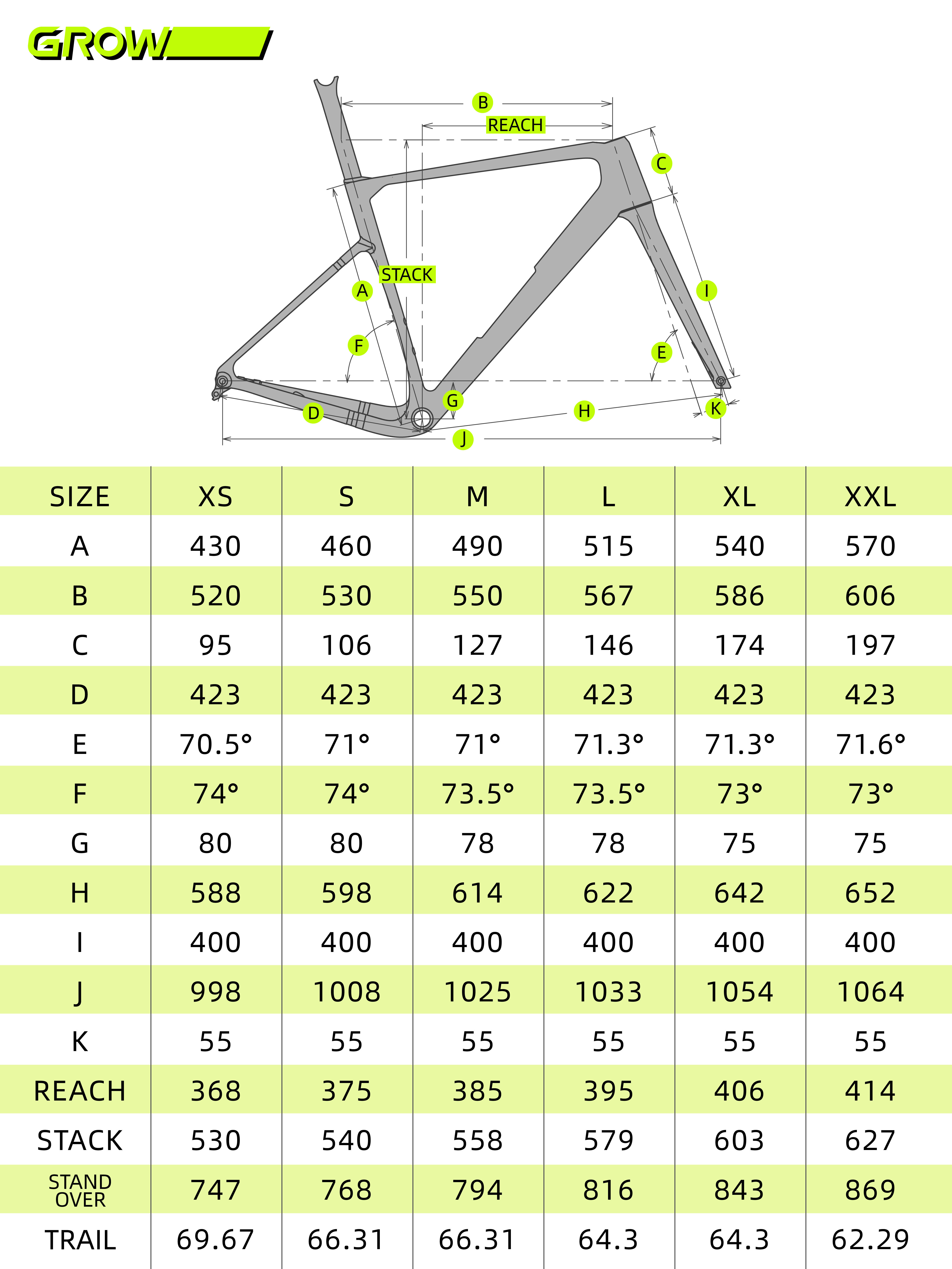

Measurements
Lengths in mm · Angles in degrees Select + beneath a size to compare
| Frame size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Stack mm | 530 | 540 | 558 | 579 | 603 | 627 |
| Reach mm | 368 | 375 | 385 | 395 | 406 | 414 |
| Effective top tube mm | 520 | 530 | 550 | 567 | 586 | 606 |
| Seat tube length mm | 430 | 460 | 490 | 515 | 540 | 570 |
| Head tube length mm | 95 | 106 | 127 | 146 | 174 | 197 |
| Head tube angle ° | 70.5 | 71 | 71 | 71.3 | 71.3 | 71.6 |
| Seat tube angle ° | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Chainstay length mm | 423 | 423 | 423 | 423 | 423 | 423 |
| Wheelbase mm | 998 | 1008 | 1025 | 1033 | 1054 | 1064 |
| Bottom bracket drop mm | 80 | 80 | 78 | 78 | 75 | 75 |
| Bottom bracket height mm | — | — | — | — | — | — |
| Fork length mm | 400 | 400 | 400 | 400 | 400 | 400 |
| Fork offset mm | 55 | 55 | 55 | 55 | 55 | 55 |
| Trail mm | 69.67 | 66.31 | 66.31 | 64.3 | 64.3 | 62.29 |
| Standover height mm | 747 | 768 | 794 | 816 | 843 | 869 |
| Front centre mm | 588 | 598 | 614 | 622 | 642 | 652 |
— Not published in the collected chart. Size labels follow the manufacturer.
Frame and fork weight
- Frame: 830 g · size XS (430)
Raw finish; manufacturer lists ±25 g; hardware and paint inclusion unspecified.
- Frame: 845 g · size S (460)
Raw finish; manufacturer lists ±25 g; hardware and paint inclusion unspecified.
- Frame: 860 g · size M (490)
Raw finish; manufacturer lists ±25 g; hardware and paint inclusion unspecified.
- Frame: 880 g · size L (515)
Raw finish; manufacturer lists ±25 g; hardware and paint inclusion unspecified.
- Frame: 895 g · size XL (540)
Raw finish; manufacturer lists ±25 g; hardware and paint inclusion unspecified.
- Frame: 960 g · size XXL (570)
Raw finish; manufacturer lists ±25 g; hardware and paint inclusion unspecified.
- Fork: 460 g
Raw finish; fork size unspecified.
Tyre clearance
- Up to 55 mm · 700C · front only
Measured tyre width. Wheel size defaults to 700C for catalogue filtering; not explicitly specified by the source.
- Up to 50 mm · 700C · rear only
Measured tyre width. Wheel size defaults to 700C for catalogue filtering; not explicitly specified by the source.
Sources
Reviewed 2026-10-01
