Tavelo Arden geometry
Tavelo Arden (carbon road) has 7 published frame sizes. Stack 508–612 mm; reach 365–410 mm. Sources, weights and tyre clearance where available.
Road · carbon · Model year not specified
Check the source. The frame version or current availability is not fully confirmed. Check the source notes.

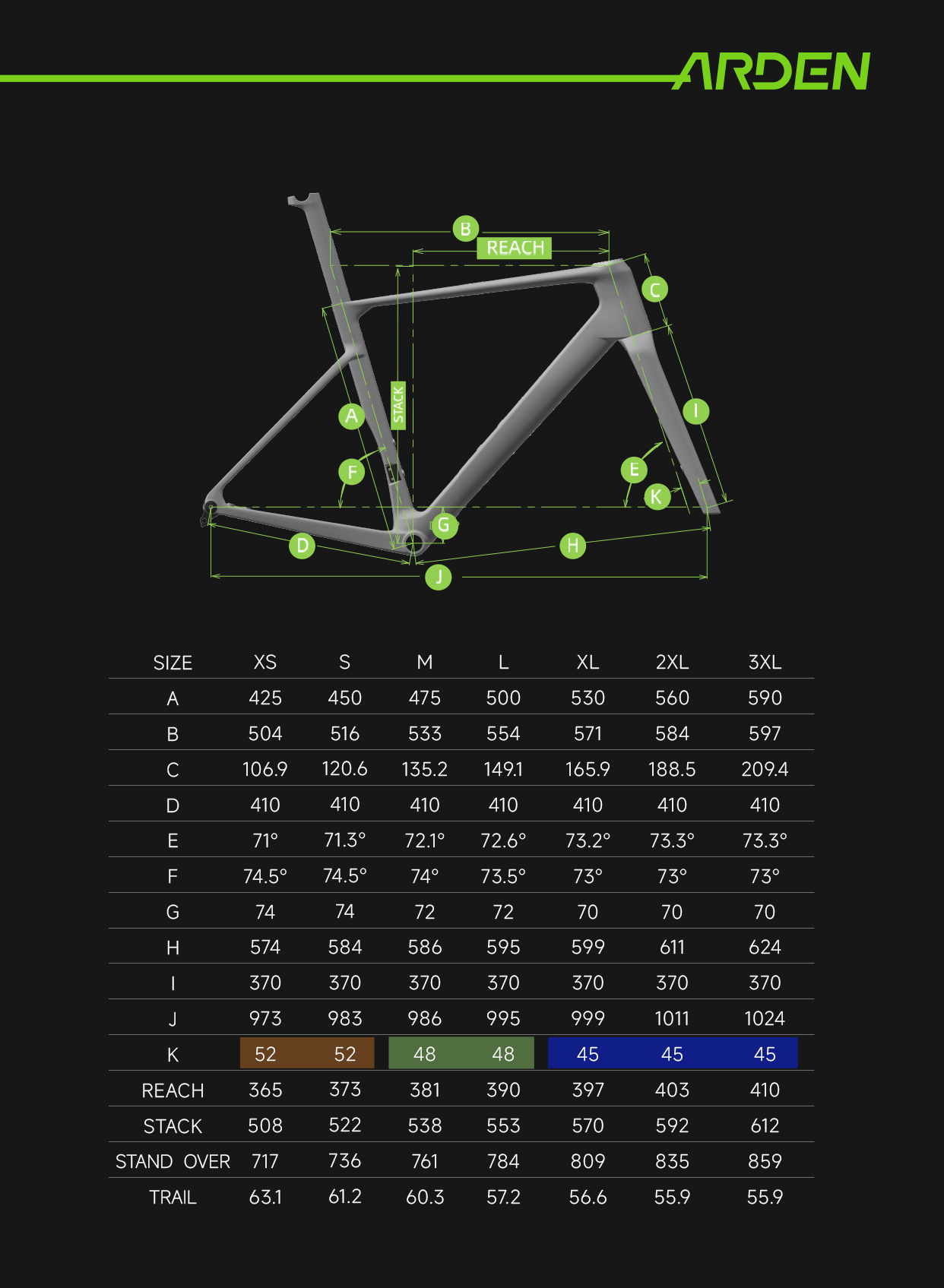

Measurements
Lengths in mm · Angles in degrees Select + beneath a size to compare
| Frame size | XS | S | M | L | XL | 2XL | 3XL |
|---|---|---|---|---|---|---|---|
| Stack mm | 508 | 522 | 538 | 553 | 570 | 592 | 612 |
| Reach mm | 365 | 373 | 381 | 390 | 397 | 403 | 410 |
| Effective top tube mm | 504 | 516 | 533 | 554 | 571 | 584 | 597 |
| Seat tube length mm | 425 | 450 | 475 | 500 | 530 | 560 | 590 |
| Head tube length mm | 106.9 | 120.6 | 135.2 | 149.1 | 165.9 | 188.5 | 209.4 |
| Head tube angle ° | 71 | 71.3 | 72.1 | 72.6 | 73.2 | 73.3 | 73.3 |
| Seat tube angle ° | 74.5 | 74.5 | 74 | 73.5 | 73 | 73 | 73 |
| Chainstay length mm | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase mm | 973 | 983 | 986 | 995 | 999 | 1011 | 1024 |
| Bottom bracket drop mm | 74 | 74 | 72 | 72 | 70 | 70 | 70 |
| Bottom bracket height mm | — | — | — | — | — | — | — |
| Fork length mm | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| Fork offset mm | 52 | 52 | 48 | 48 | 45 | 45 | 45 |
| Trail mm | 63.1 | 61.2 | 60.3 | 57.2 | 56.6 | 55.9 | 55.9 |
| Standover height mm | 717 | 736 | 761 | 784 | 809 | 835 | 859 |
| Front centre mm | 574 | 584 | 586 | 595 | 599 | 611 | 624 |
— Not published in the collected chart. Size labels follow the manufacturer.
Frame and fork weight
- Frame: 780 g · size L (c-t 500 mm)
Race layup, unpainted and without accessories, ±25 g.
- Fork: 355 g
Unpainted and without accessories; fork size unspecified.
Tyre clearance
- Up to 38 mm · 700C
1× drivetrain. Wheel size defaults to 700C for catalogue filtering; not explicitly specified by the source.
- Up to 34 mm · 700C
2× drivetrain. Wheel size defaults to 700C for catalogue filtering; not explicitly specified by the source.
Sources
Reviewed 2026-10-01
